Technology instead of muscle power: the Vöhringen works railway

For a long time, transports from the Vöhringen plant to the railway station were handled by horse-drawn carts. And in the plant itself, it was mainly human muscles and sweat that ensured the transport of materials and products on specially laid roller tracks. In 1893, the municipal administration allowed Wieland to install this narrow-gauge railway also between the plant and the railway station and to operate it with draught horses. This admittedly only under the condition that "traffic on the main road is not hindered or obstructed" and that "the track is laid so low that the same can be driven over at any point".

Almost ten years later, the horse-drawn railroad could no longer deal with the constantly increasing transport volumes. Around 16 tons of goods had to be brought to the station every day. Wieland therefore applied for permission to operate the railway as before "while retaining the existing track structure, instead of using horses with a petrol engine". Because there was "not the slightest intolerance or nuisance" with the horse-drawn railway, the application was approved at the end of 1902. However, this was done under strict conditions, which were checked and resulted in requests for improvements. In January 1904, for example, Wieland had to confirm in writing to the Royal Railway Operations Directorate in Kempten that now "a sign was placed opposite the driver's cab indicating the maximum permissible speed of the locomotive at 6 kilometres per hour". With the addition: "We have also ordered our driver, under threat of punishment, to drive only at this speed".

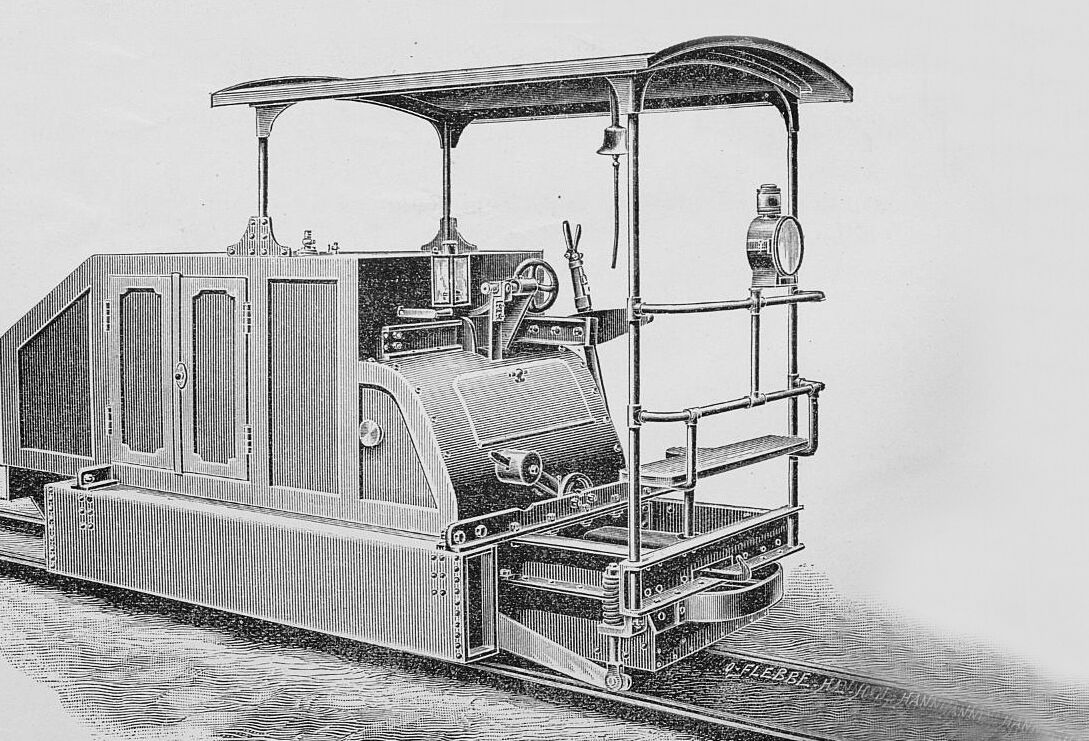

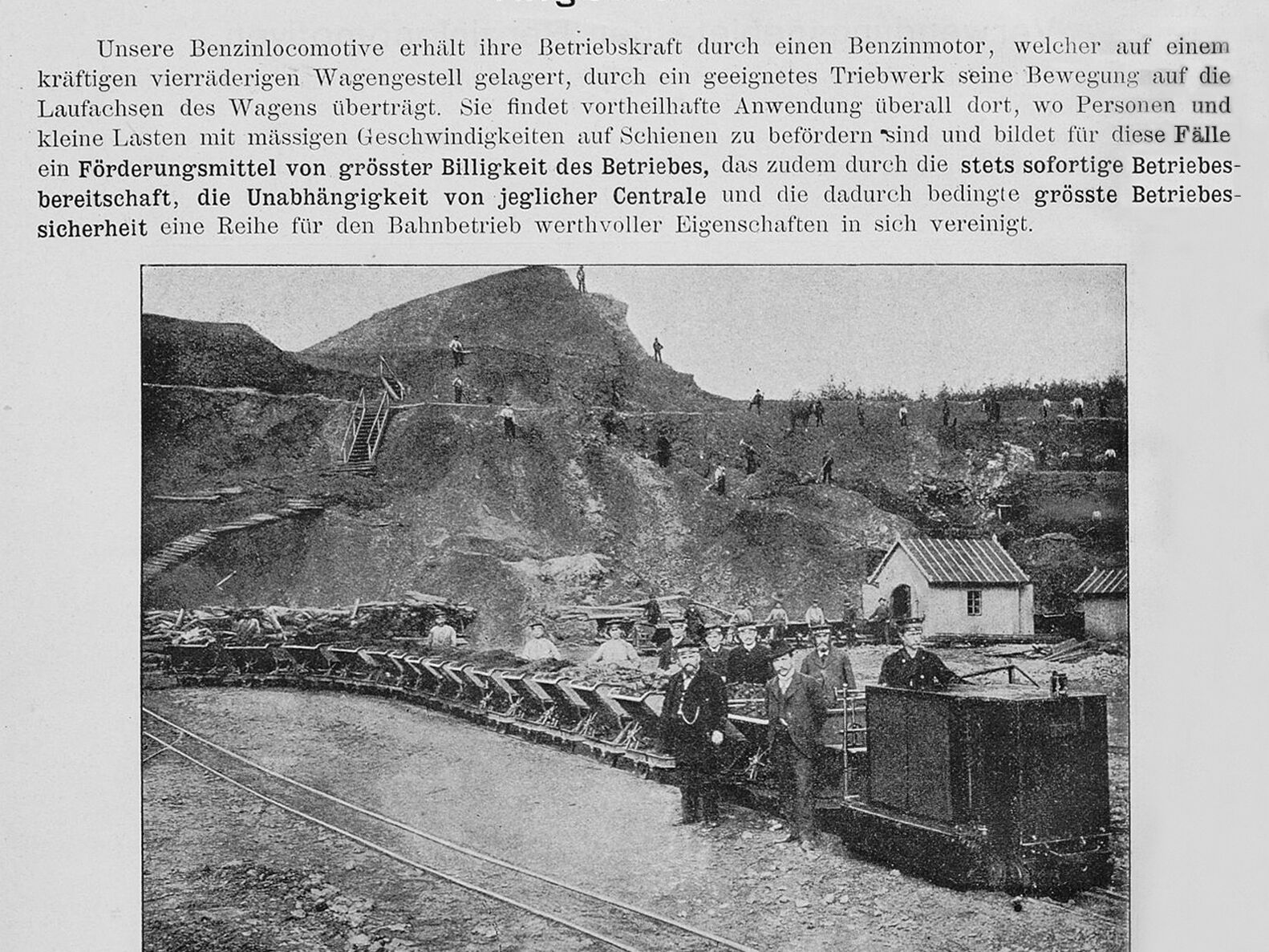

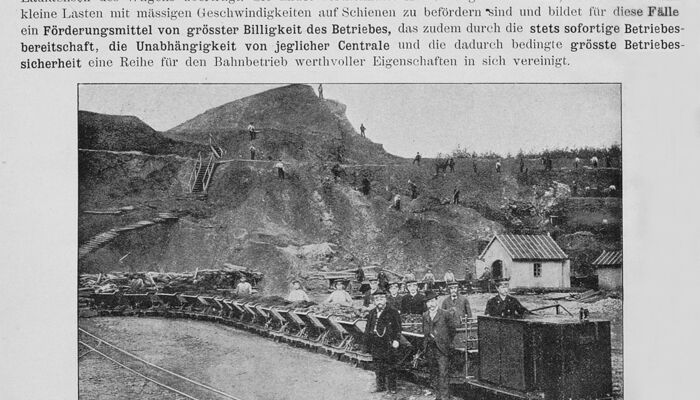

The railway was initially operated – now also within the plant - by a gasoline locomotive from the Deutz gas engine works. The electric locomotives purchased from 1908 onwards were ahead of their time, with battery drive, which even then caused problems with long charging times and high battery weight. This was in contrast to the "fireless locomotive" of 1914, whose boiler was pressurized with generated steam.

As early as 1912, the limited capacity of the narrow-gauge railway led to the laying of a normal railway line and thus the direct connection of the works to the regular railway network. For internal transport within the plant, however, the narrow-gauge railway remained in parallel operation until 1972, when the last 5 narrow-gauge diesel locomotives were finally decommissioned.
